Miniature High Precision 6-Axis Robotic Arm - DB0 series



DB0 is a compact, 4.7 kg weight 6-axis robot arm with high rigidity. These features create high precise motion and operate in limited space with optimal usage. 5 µm repeatability makes higher precision mission to be done. DB0 also provides a guided panel to complete the path planning easily.



catalog cpcRobot 6-axis robot Download
software Robot_HMI_Beta_1.2.10 Download




- Small footprint
- Lightweight
- Low noise
- Class-leading repeatability
- Industrial
- Class-leading torque motor
- High performance servo drive
- High resolution optical absolute encoder
- Brakes in J1, J2, J3 and J4 axes
- Internal cable arrangement
- High rigidity
- Tool I/O port: AWG#32, DI x 2, DO x 2, AI x 2

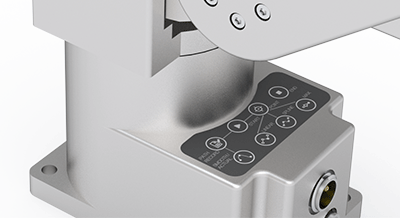

  Teach-in panel

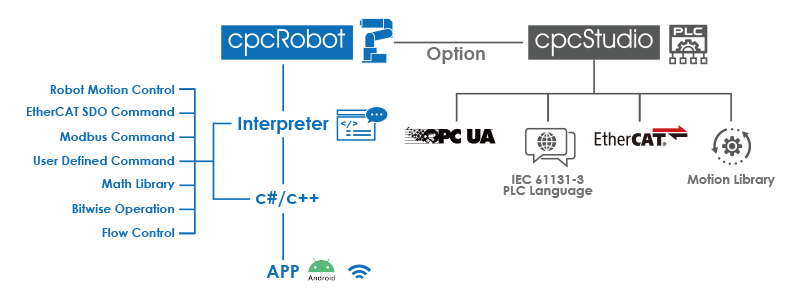

cpcStudio - Robot package

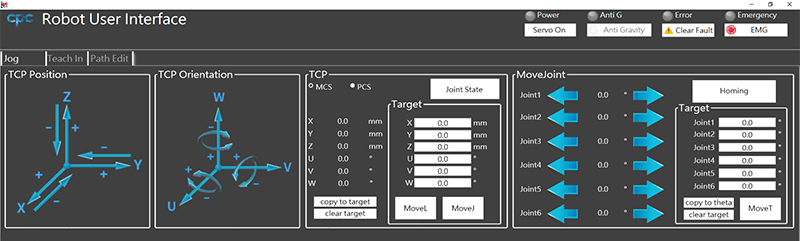

Multiple functions control

cpc Robot - User Interface provides direct control of robotic arm movement. The user can freely move endpoint or joint by jog. Also the user can accurately move the robot arm by giving end point target position or joint angle position.

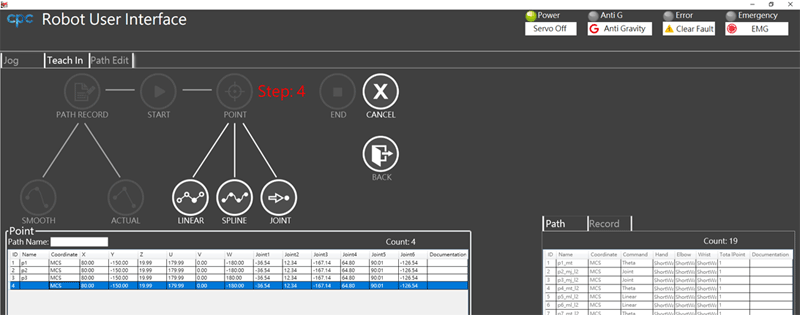

High-Friendly Teaching Kit

Users are free to choose different path and teaching methods, including points (up to 20 points), path recording function (max. 2 minutes by hand guiding), and allow users to choose multiple  points to execute movement commands in different ways.
