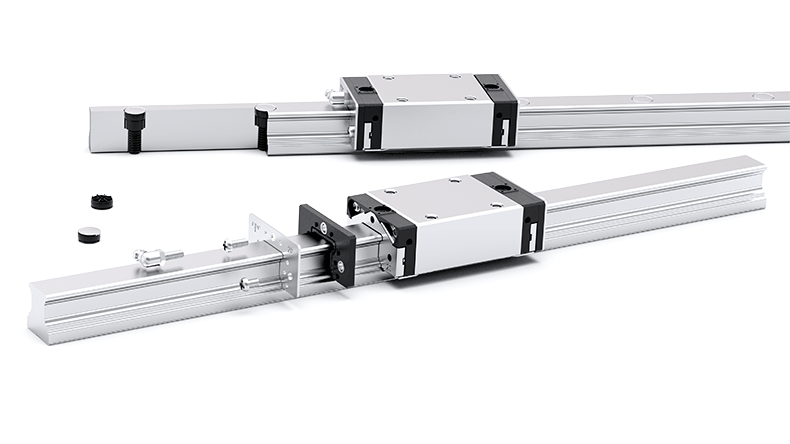

External NBR Seal (ARC/HRC/ARR/HRR/LRR)




Available for applications in harsh environment such as grinding machine, glass working
machine, graphite machine, wood-working machinery, dust-proof solution.

(Ordering Code: SN)






Metal-Plastic Cap Patent Design for Standard Rail-Bolt-Hole

(ARC/HRC/ARR/HRR/LRR/WRC)





Metal-plastic cap can extend the life span of the blocks and prevent objects from piling up in
the rim of the counter-bored hole and further obstruct the invasion of the objects into the blocks

(Ordering Code: MPC)






Plastic Caps (ARC/HRC/ARR/HRR/LRR/WRC)




cpc metal cap is kept up stand in the rail bolt-hole , securely positioned on the screws top, and thus prevent sinking problems.

(Ordering Code: PC)

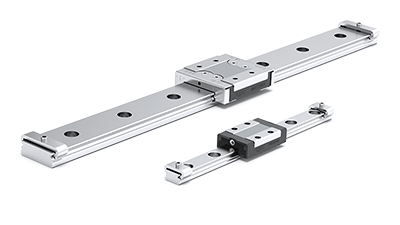

MR Series - Metal Stopper on rail


To prevent the block separates from therail during the transportation or the installation which may cause the item damaged or even scattered.

Perfect plus for the rail installed on the vertical axis ( Z axis ) to prevent the block separates from the rail due to the gravity.

(Ordering Code: MS)

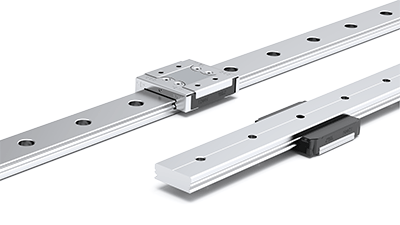

MR Miniature Linear Guide Carbon Steel series


-  Providing rail length to 3m.
-  Hardness of the ball runner rail surface:HRC 58 ~ 63
Hardness of the centre:About HRC 28
-  Using on the industrial machineries in normal environment
-  Sizes are exactly the same as Stainless steel products
-  More competitive prices
-  Precision class available for N, H, and P Grade.

(Ordering Code: K)

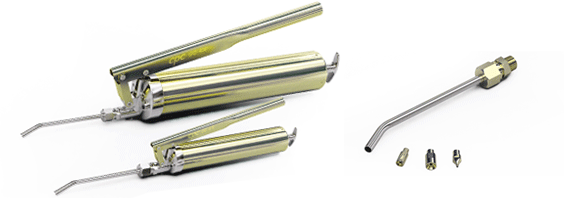

Lubrication Kit and Grease Gun


cpc Lubrication Unit is a supply nozzle with 3 different sizes of nozzle adaptors. These nozzle adaptors are suitable for different size of grease nipple on different size of linear blocks.
