Product Descriptions

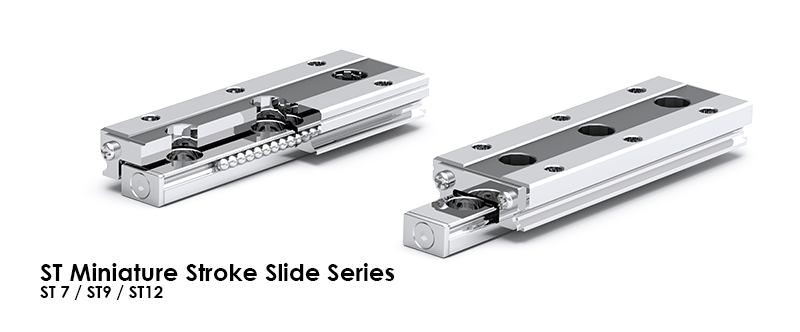

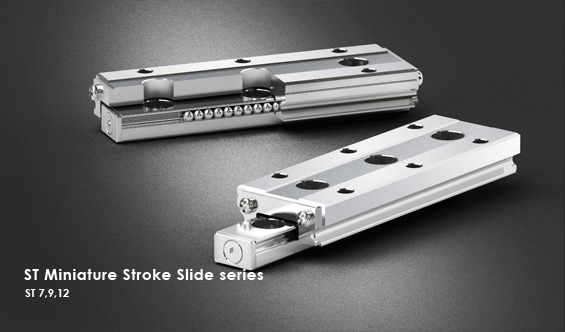

ST Miniature Stroke Slide Series


Download
Description
catalog ST Miniature Stroke Slide Series Download





dot High load and high moment capaity

The ST Miniature Stroke Slide Series is designed with two rows of balls. The ball track has a gothic profile design with a 45 degree contact angle to achieve equal load capacity in a mono block. This provides more space for the larger rolling elements while enhancing the load and moment capacity.


dot High running accuracy and smoothness

The steel balls of the ST miniature stroke slide series roll on the rail without recirculation, resulting in
excellent running behavior, smoothness, low friction, and high accuracy without vibration.


dot Dual plate design

The ST Miniature Stroke Slide Series adopts a pair of end plates into the design. Both the center rail and bearing block sides have a plate installed that prevents the linear guide from over-stroking.


dot Easy mounting

The mounting of the ST Miniature Stroke Slide Series is accomplished by fitting the fixing screw downward into the count bore of the rail by intersecting the hole pattern on the block and cage within the
hole pitch. The one piece cage therefore does not influence the mounting of the rail while the preload
is preset by ball sorting.


dot Temperature
The ST Miniature Stroke Slide Series can withstand temperatures of up to 150 °C.
There are two treatment options for higher
temperature applications:

T1: 200°C

T2: 300°C
Applying treatments for higher temperature applications will reduce the load capacity.

dot Anti-corrosion feature

The ST Miniature Stroke Slide Series is composed of quenched hardened process stainless steel for the rail, block, and steel balls. The block plate and screws are made of stainless steel as well -- providing a great model for maintenance and inspection applications.



Size(Model Code): ST7M . ST9M . ST12M . (more)
